05/01/18 ~ CB027: Triple-Differentiator Processor-01-Input: Scope image: RC
only & Scope image: RC with Clipper Diode.

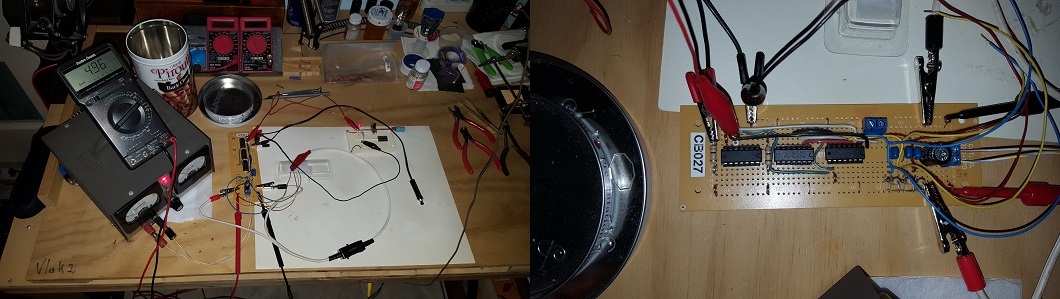

05/02/18 ~ CB027: Triple-Differentiator Processor-01-Input. /// 05/03/18 ~
CB027: temporary hookup in between CB010 & CB013 for successful testing.

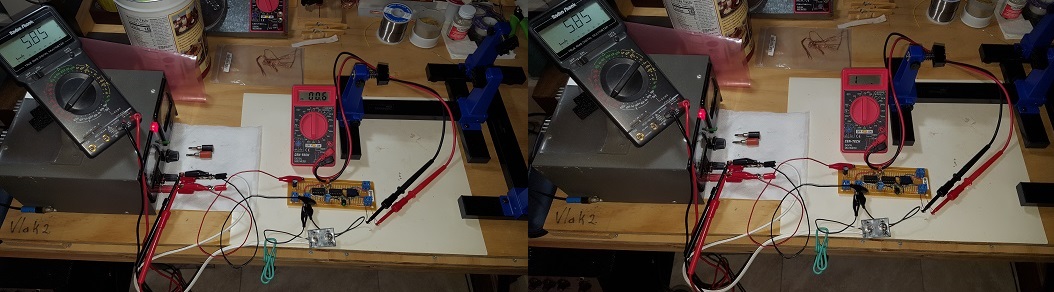

05/12/18 ~ CB027: ME014 testing using Test Set 002, Test Set 003 &
LED-Resistor load.
05/17/18 ~ SensorSubIncoming01: Define height position of the IR Emittor &
Detector vs 4423 Low flat car on M-rails.
05/18/18 ~ SensorSubIncoming01: IR Detection and Power Management.
05/18/18 ~ SensorSubIncoming01: IR Emission & Detection test setup.
05/31/18 ~ Systems Integration: CB027 & SensorSubIncoming01.

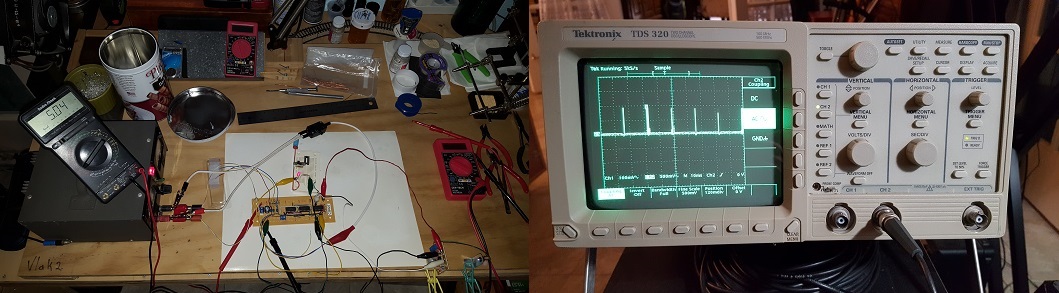

06/05/18 ~ SensorSubIncoming01: Oscillating spikes are shown at TP035 after
warm-up: Ghosts In The Machine.
06/05/18 ~ SensorSubIncoming01: Oscillating spikes are shown at TP035,
expanded: Ghosts In The Machine.
06/12/18 ~ SensorSubIncoming01: Clamp PCB into Velleman, Circuit Board
Clamping Kit, VTHH6.

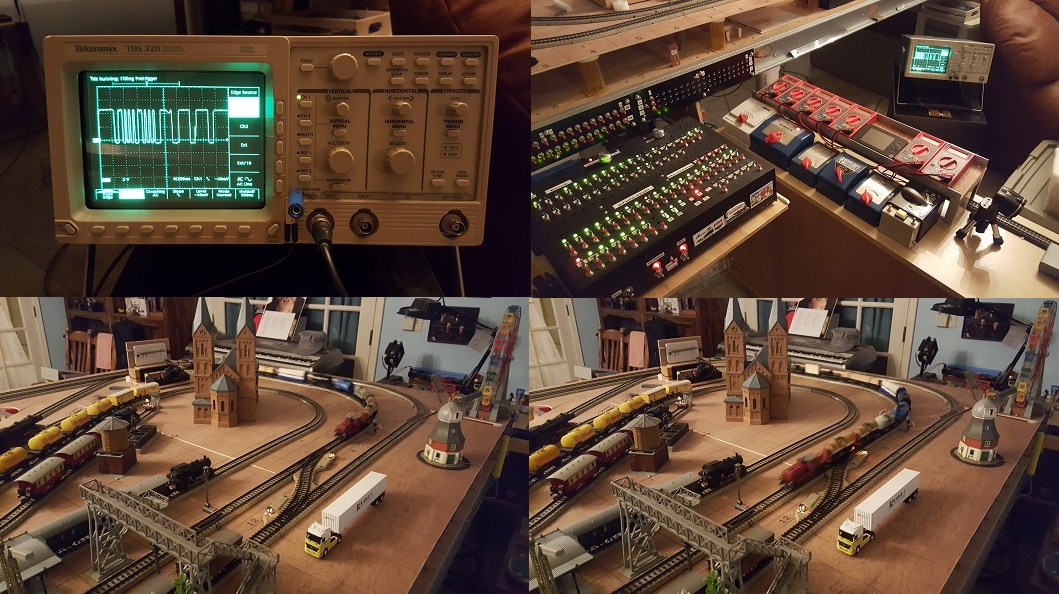

06/14/17 ~ Systems Integration: CB027 & SensorSubIncoming01 ran successful
for 180 minutes.
Euro T&F 008 ~ 06/27/18 ~ CB027 installed onto Plank 27 and connected to
CB010 and CB013.
07/19/18 ~ SensorSubIncoming01 installed @ Underground A23.
07/21/18 ~ IR Detector PCB Dark Box construction.
07/23/18 ~ SensorSubIncoming01: Signal arriving at CB027-TP038.
07/28/18 ~ Control Panel Auxiliary 02: Drill 60* holes with ¼" bit in the
Central Machinery: Bench Drill Press.
07/30/18 ~ Control Panel Auxiliary 02: installed onto Stud Ultrasteel 03.
/// 07/31/18 ~ Control Panel Auxiliary 02: solder Ground Strips.
08/05/18
Noch 58290 Street Tunnel Portal
Vollmer 48100 Tunnelportal, Eingleisig, Steinkunst
Busch 7024 Tunnel Portals [HO 7024] [2 ea]
Faller 151079 Cyclist and Moped Rider
Faller 153027 Riders
08/05/18 ~ Install Switch Push 047 "Emulate Enable" into Control Panel Main
Front Panel.
08/05/18 ~ Plank 15: Drill 20 mm Ø [#12] feed through hole for Control Panel
Auxiliary 02.
08/05/18 ~ BS049: Installed onto Stud Ultrasteel 03.
Euro T&F 008 ~ 08/13/18 ~ CB028: soldering in the Velleman, Circuit Board
Clamping Kit, VTHH6.
08/14/18 ~ CB028: ME015 - ME016 - ME017 installed.

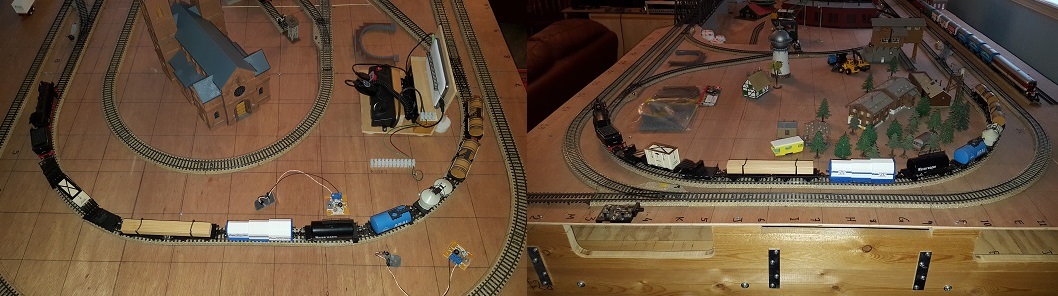

Euro T&F 008 ~ 08/23/18 ~ Train Layout: New CB029 and rework CB013 & CB027.
09/03/18 ~ Train Layout: After retro-fitting: CB027, CB027PiggyBack, CB028 &
CB029.
09/10/18 ~ Switch Toggle 114 installed to be able to turn OFF Lamp Holder
White 003: interference with SensorSubIncoming01.
09/06/18 ~ Fit an IC-socket into a Datak 12-617 PCB to ensure hole-spacing
is OK.
09/11/18 ~ Re-measure the height of SensorSubOutgoing01 & SensorBlok010.
09/13/18 ~ SensorSubOutgoing01 & SensorBlok010 pass Electrical Testing.

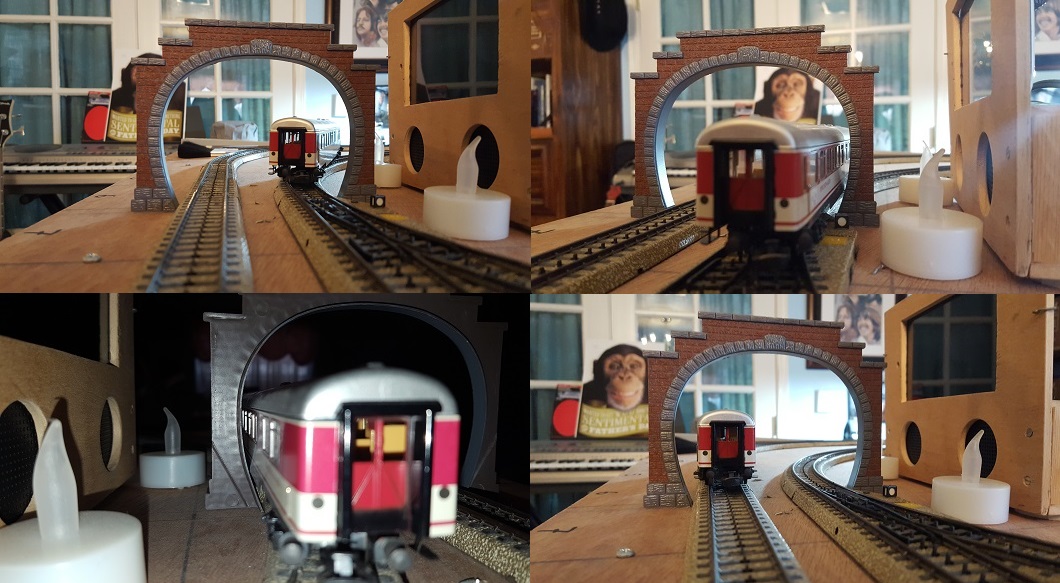

09/14/18 ~ Train C011 BR38 (German Freight, Specialty) = 1404 mm, fits on
Blok010, later under tunnel.
09/15/18 ~ Train C011 BR38 (German Freight, Specialty) = 1404 mm, fits on
Blok007, later under tunnel.
09/15/18 ~ Train C011 BR38 (German Freight, Specialty) = 1404 mm, fits on
Blok007, later under tunnel.

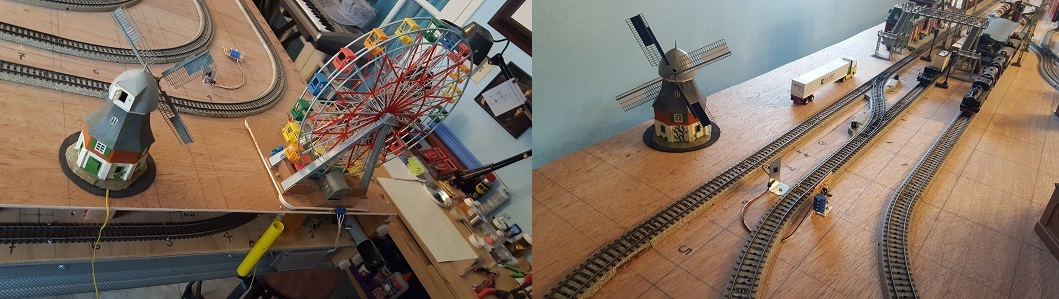

09/12/18 ~ Rescued Mickey Mouse from his snow-globe (@ Faller's Ferris
Wheel).
09/15/18 ~ Train C011 BR38 (German Freight, Specialty) = 1404 mm, fits on
BlokSub003 = Underground.
09/15/18 ~ Train C011 BR38 (German Freight, Specialty) = 1404 mm, fits on
BlokSub003 = Underground.
09/15/18 ~ BS050 installation onto Plank 29.
09/15/18 ~ Cover Curtain Rod 87 Vanilla installation onto Triangle01.
09/16/18 ~ Output of SensorSubOutgoing01 on the Tektronix TDS 320 Two
Channel Oscilloscope 2 VAC ~> 50 ms-scale
[Note that the input capacitance of the scope differentiates the signal].
09/18/18 ~ Need to trim bottom of Tunnelpoort Blok004&Blok010 straight side
to create clearance for long cars in the curb side.
09/18/18 ~ SensorBlok010: install wire conduit yellow plastic pipe. ///
09/18/18 ~ SensorBlok010 installed in Blok010.
09/19/18 ~ SensorBlok010: wire conduit two giant straws together with
packaging tape.
09/19/18 ~ Output of SensorBlok010 on the Tektronix TDS 320 Two Channel
Oscilloscope 2 VDC ~> 250 ms-scale
[No differentiation by scope input capacitor].
09/24/18 ~ New arrival: Faller 151060 On the farm.
09/24/18 ~ New arrival: Faller 120174 Level-crossing with gatekeeper's
house.
09/24/18 ~ New arrival: Faller 191718 Loreley Tunnel portals.
09/24/18 ~ New arrival: Faller 130391 Schlossberg Inn
09/28/18 ~ CB030 completed and passed electrical testing.
09/30/18 ~ CB030 installed onto Plank 06 and connected to BS050.
10/01/18 ~ Cable010-Strand006-Strand007 connect to CB021 & CB030.

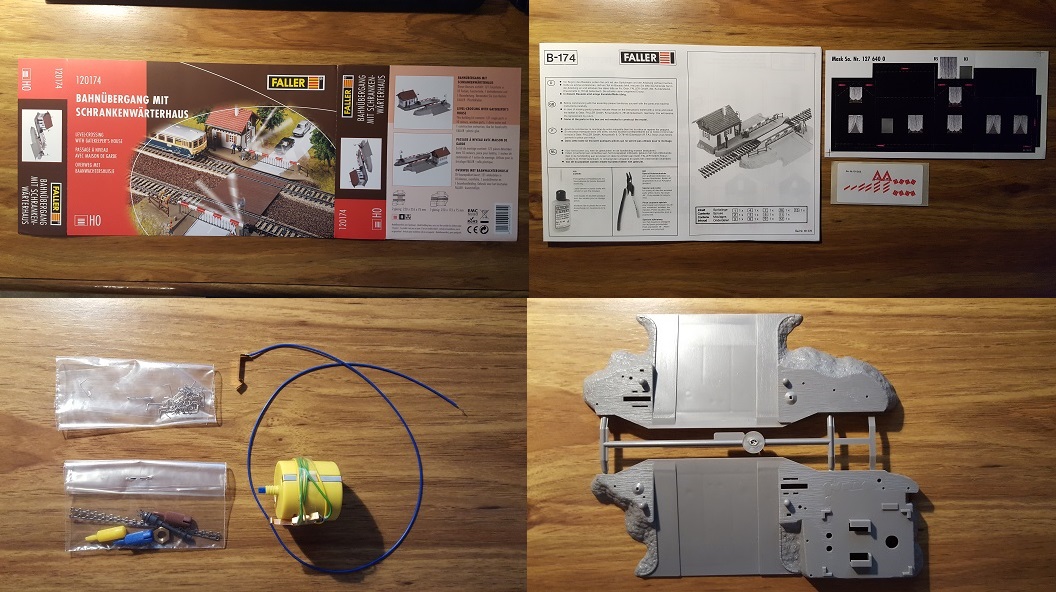

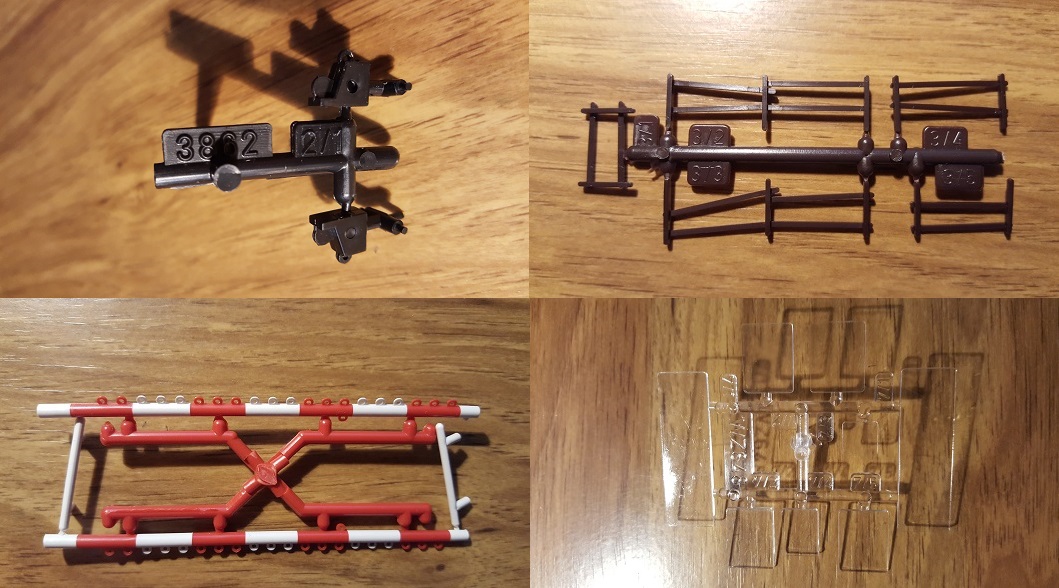

10/01/18 ~ Faller 120174 Level-crossing with gatekeeper's house: Sprues.
10/02/18 ~ Faller 120174 Level-crossing with gatekeeper's house: Track
Fillers placement on Blok011.
10/02/18 ~ Faller 120174 Level-crossing with gatekeeper's house: the train
passes with the Track Filler installed.
10/03/18 ~ Faller 120174 Level-crossing with gatekeeper's house paint bottom
wall trim with Testors 1166: Brown Flat Enamel.
10/05/18 ~ Faller 120174 Level-crossing with gatekeeper's house: Four Walls.
10/05/18 ~ Faller 120174 Level-crossing with gatekeeper's house: Wall [A]
onto Wall [D].
10/05/18 ~ Faller 120174 Level-crossing with gatekeeper's house: Wall [B]
onto Wall [C].
10/05/18 ~ Faller 120174 Level-crossing with gatekeeper's house: Fit Four
Walls onto Floor Board House 1/2.
10/05/18 ~ Faller 120174 Level-crossing with gatekeeper's house:
Gatekeeper's House onto Floor Board House 1/2.

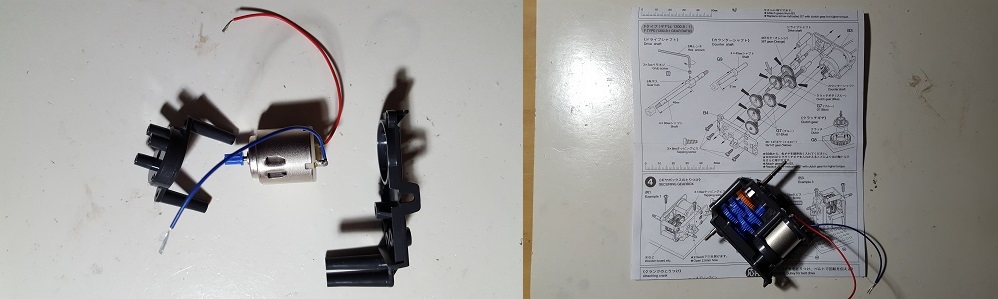

10/06/18 ~ Tamiya 72005**1200 6-Speed Gearbox H.E.
10/07/18 ~ Tamiya 72005**1200 6-Speed Gearbox H.E.
10/10/18 & 10/14/18 & 10/15/18 ~ Faller 120174 Level-crossing with
gatekeeper's house:
Barriers, Sidewalks Painted, Barriers installed and functional.
11/06/18 ~ Faller 120174 Level-crossing with gatekeeper's house: The
quiescent condition of the Barriers is in the raised position.
11/13/18 ~ CB022 with temporary R1047 alligator clipped across R0086a+b+c:
resulting in a 5.24 Ω power resistor.
11/19/2018 ~ Receive Belgian Freight Cars "Oppeln" Serial Numbers: 257488 &
257654 (with Brakeman's Cab & Platform).
Euro T&F 008 ~ 12/06/18 ~ Faller 153028 Stable Staff, Groom, Trainer.
12/06/18 ~ 37719 Rail Car Commuter Diesel Powered ~ DB AG BR 648.2 (LINT
41).
Wallpaper Märklin ~ 03/01/16 ~ Rail Car Commuter Diesel Powered ~ DB AG BR
648.
