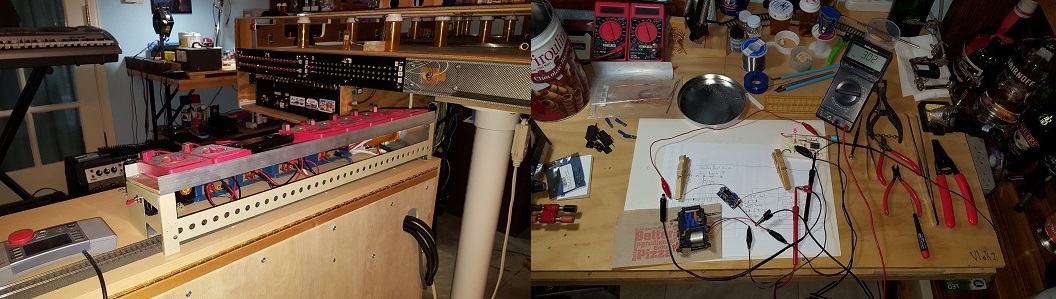

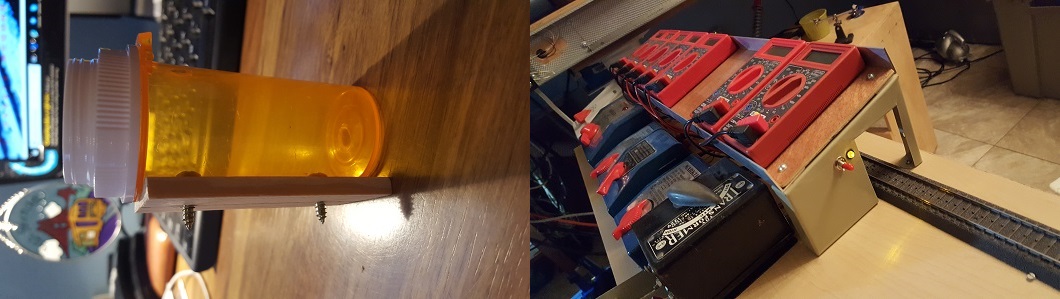

Euro T&F 009 ~ 12/09/18 ~ DVM Tray +9 VDC Battery Compartment.
12/11/18 ~ DVM Tray +9 VDC Battery Compartment: right DVM Tray Support: LED
Amber 012, Switch Toggle 115 = ON [Remember DVM Power = ON]
12/12/18 ~ Power Plant, Digital Programming Track: Painted Safety Bar.
12/18/18 ~ Tamiya 72005**1200 6-Speed Gearbox H.E. connected to CBSub001
(Module Switch Regulator DC-DC Adjustable Buck Converter)

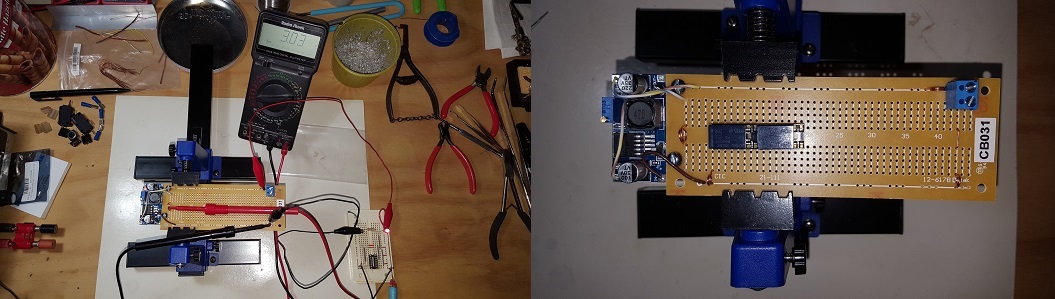

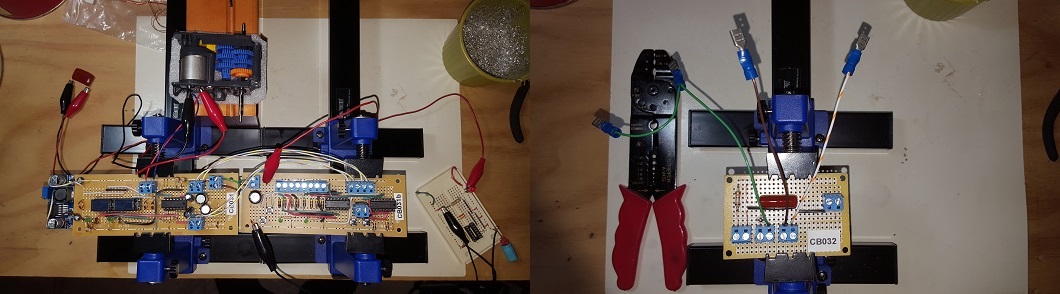

12/21/18 ~ CB031a electrical testing of integrated CBSub001. /// 12/21/18 ~
CB031a with K009 & K010.
12/22/18 ~ Hook-up Tamiya 72005**1200 6-Speed Gearbox H.E. to CB031a for
electrical testing.
01/02/19 ~ CB031a & CB031b: side by side pending integration.

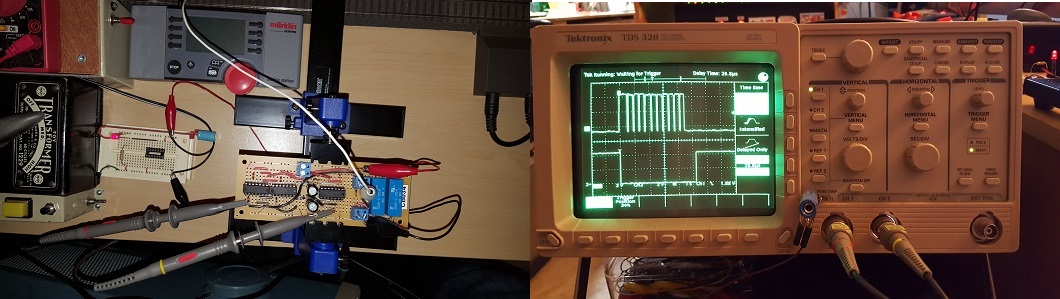

01/07/19 ~ Processor-06, CB031a & CB031b electrical testing with Capacitor

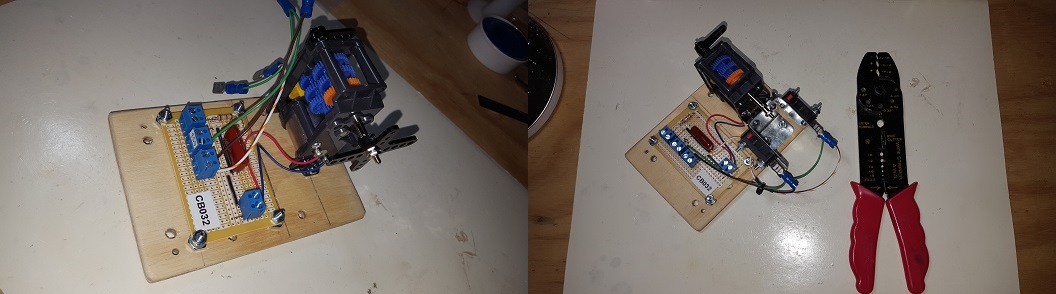

across motor. /// 01/16/19 ~ CB032 complete.

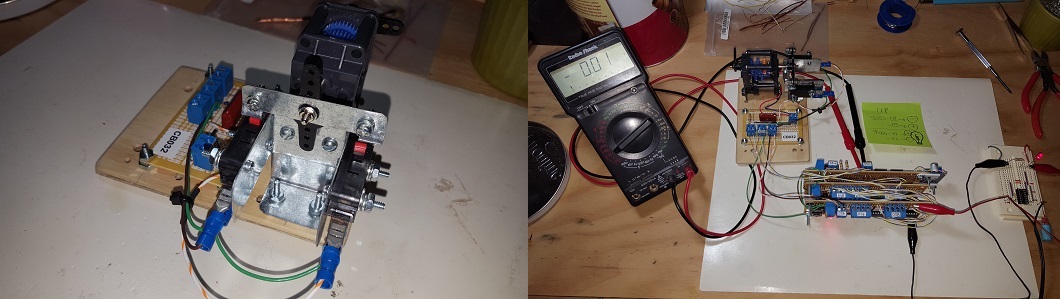

01/17/19 ~ Gearbox 001 Assembly with Tamiya 72005**1200 6-Speed Gearbox H.E.
& CB032.
01/19/19 ~ Gearbox 001: Switch Limit 001 & Switch Limit 002 installed and
connected.
01/19/19 ~ Gearbox 001: Rocker Arm Operating Switch Limit 001 & Switch Limit
002.
01/26/19 ~ Processor-06 (CB031abc) connected to Gearbox 001 (CB032).

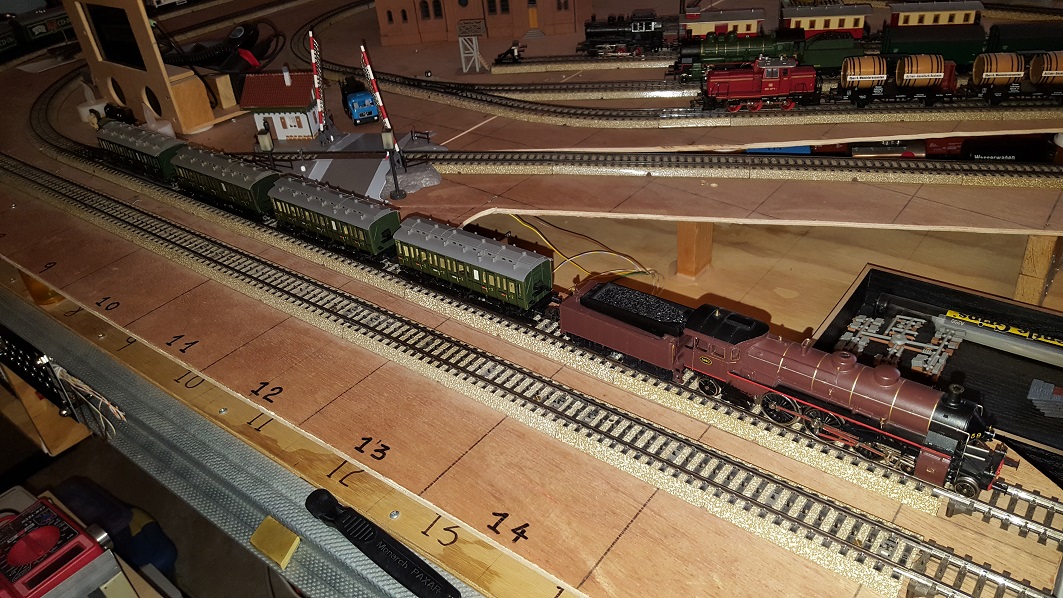

02/02/19 ~ Train C005 BR89 (Private Passenger, Green) catches on Faller
120174 Level-crossing with gatekeeper's house, Floor Board Drive-up.

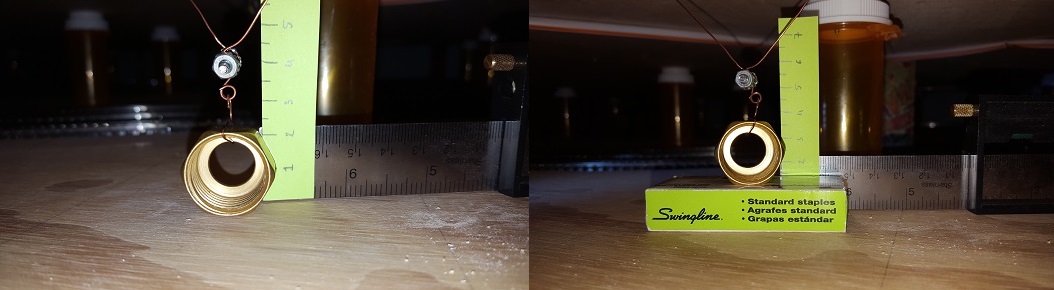

01/29/19 ~ Level-crossing: Low-point of the weight = ± 20 mm ~ High-point of
the weight = ± 35 mm.

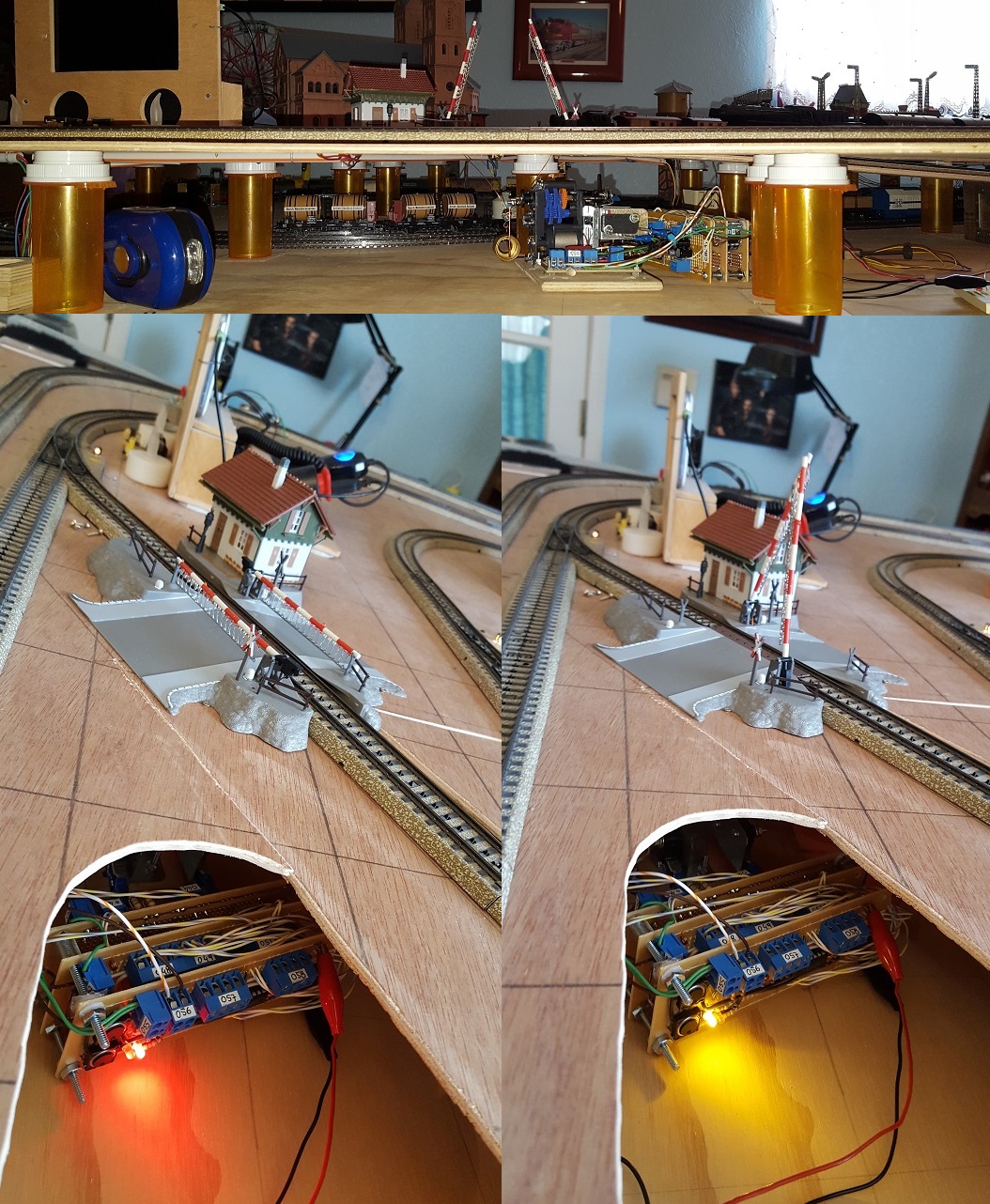

02/05/19 ~ Faller 120174 Level-crossing with gatekeeper's house: Barriers
operated by Gearbox 001 & Processor-06.
02/14/19 ~ New arrival: 3074 Locomotief Diesel ~ DB Class 216-090-1.

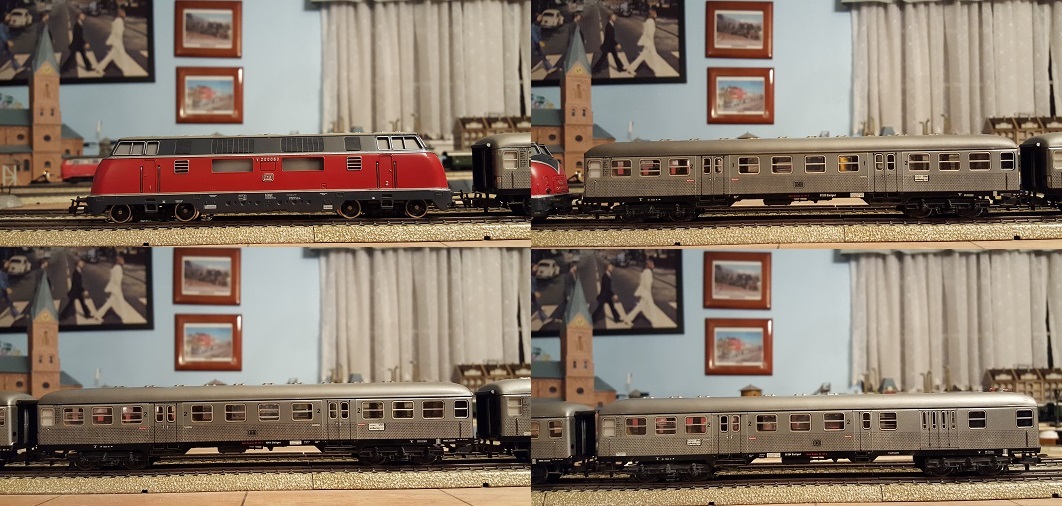

02/19/19 ~ New arrival: 3021 Locomotive Diesel ~ DB BRV200 & three
"Silberlinge".

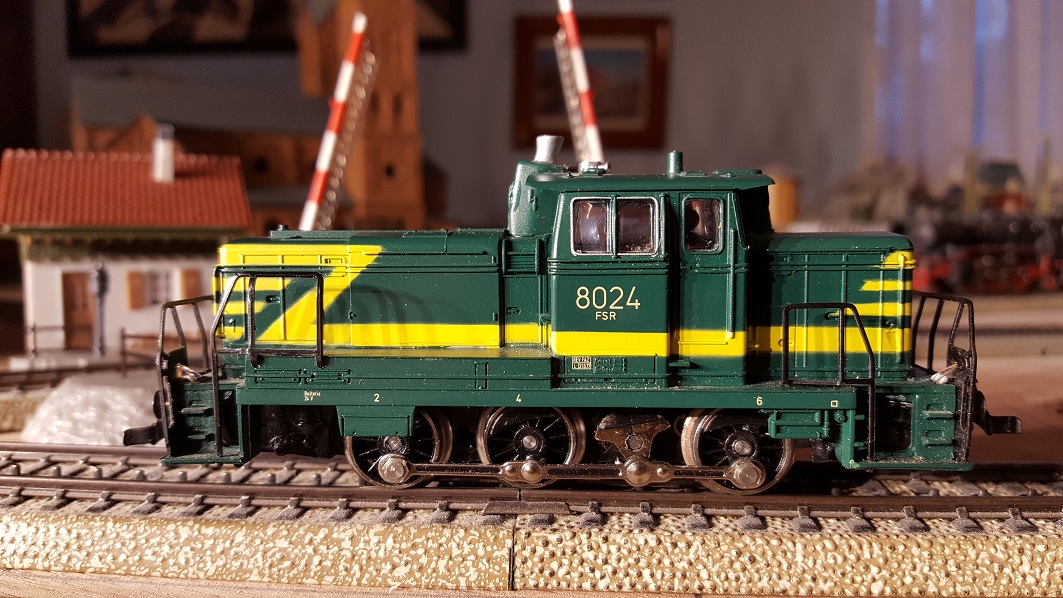

02/27/19 ~ New arrival: 3149 Locomotive Diesel ~ SNCB/NMBS Series 8024.

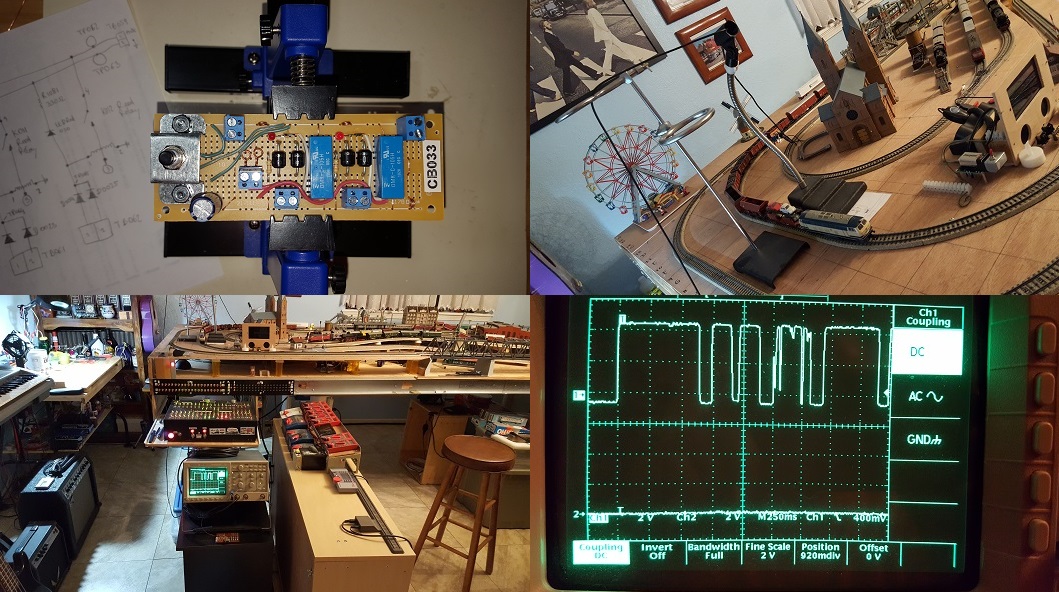

02/25/19 ~ CB033: Electro-Magnetic Interference (EMI) Trap ~ Relay Interface
Rx.

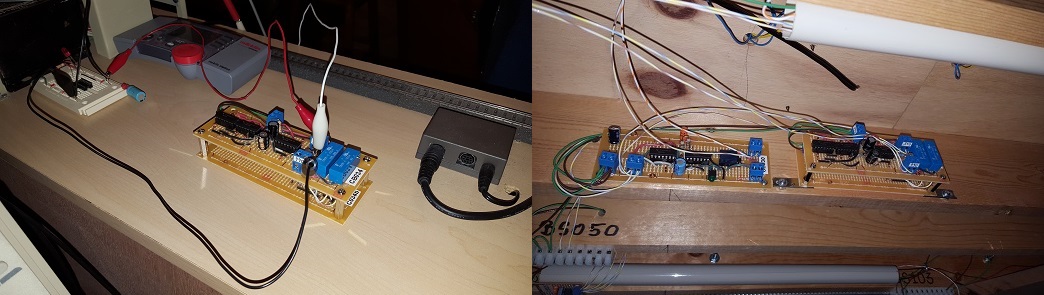

02/26/19 ~ CB034: test setup for SensorBlok010 performance evaluation.

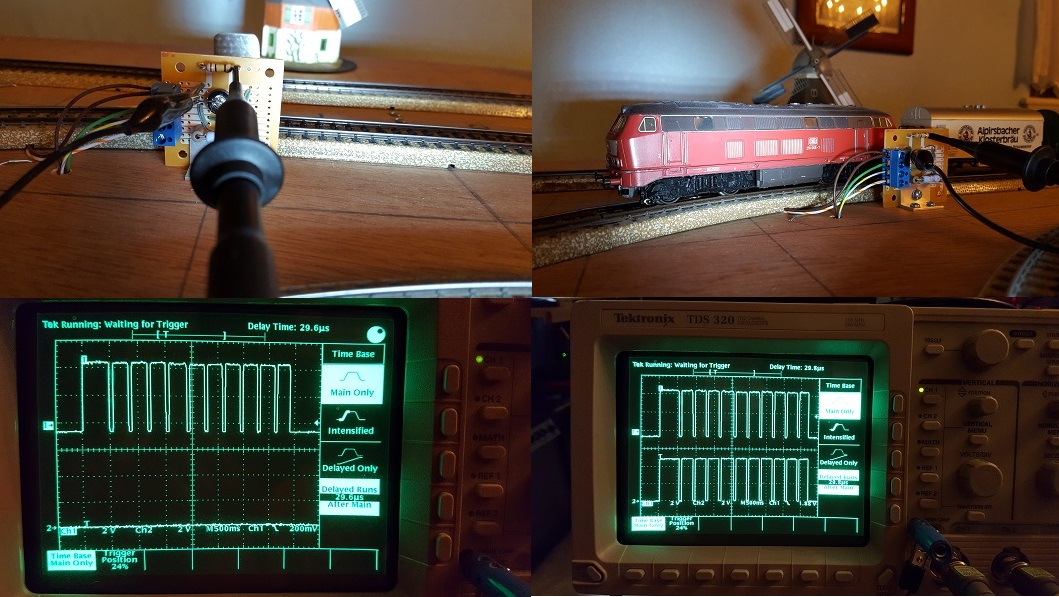

03/18/19 ~ CB034: test setup for SensorBlok010 performance evaluation:
Using new probes & Custom-Built Probe: TP069 vs TP071 ~> IN Phase (twice
inverted).

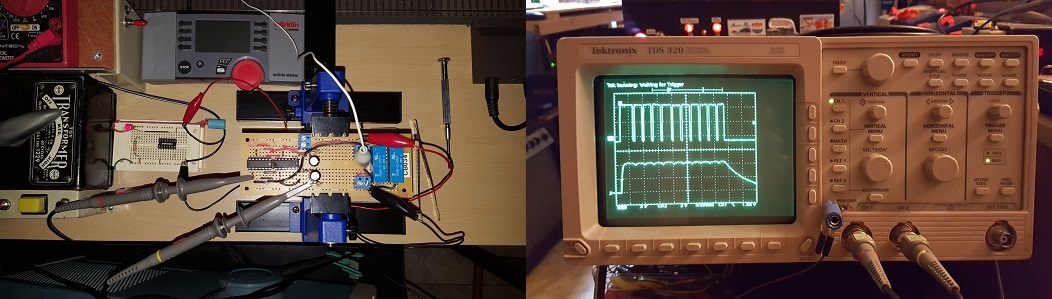

03/19/19 ~ CB034: Integrator Definition: (1) Resistor 2.2-Kohm-Capacitor 22
μF
(2) Resistor 2.2-Kohm-Capacitor 47 μF (3) Resistor 15-KOhm-Capacitor 47 μF.
03/20/19 ~ CB034: Integrator Installed.
03/22/19 ~ CB034: Schmitt-Trigger / Inverter Installed.

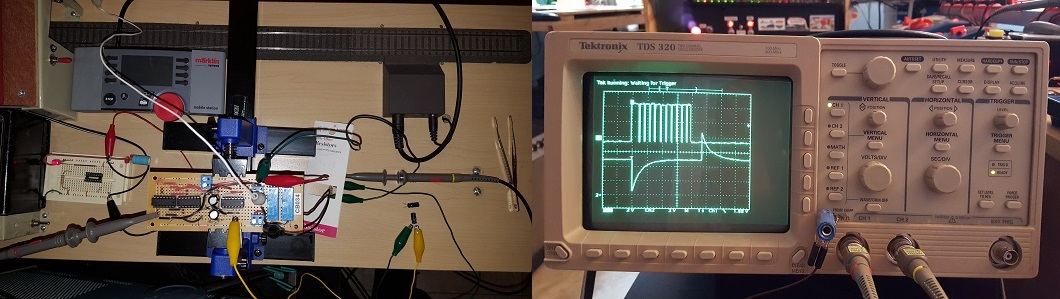

03/23/19 ~ CB034: Pulse Differentiator shows a leading negative pulse, ± 0.5
s wide at 50%.
03/29/19 ~ Processor-07 is functional.
03/31/19 ~ Processor-07 installed, Faller 120174 Level-crossing with
gatekeeper's house operational (03/31/19).
03/31/19 ~ Install LED White Soft Ass'y 001 into Faller 120174
Level-crossing with gatekeeper's house.
04/02/19 ~ Control Panel Auxiliary 02 on DVM Tray for modifications.

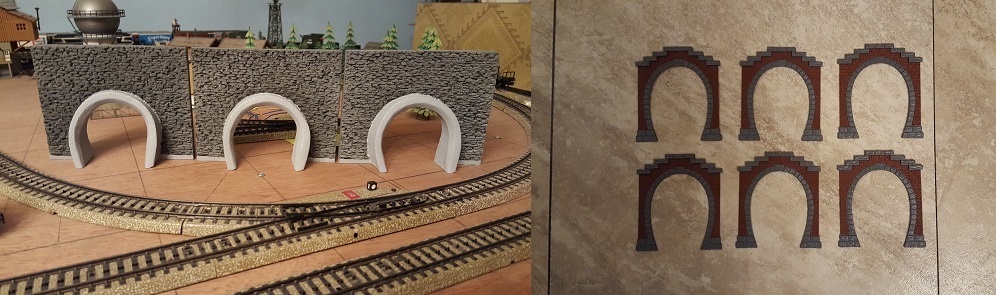

04/04/19 ~ Tunnelpoort Car: Lisa painted the concrete part using: Model
Master 4680: Gray Primer Acrylic.
04/04/19 ~ Tunnelpoort Train: Painted by Lisa using: Testors 1185: Rust &
Testors 1163: Gray Flat.

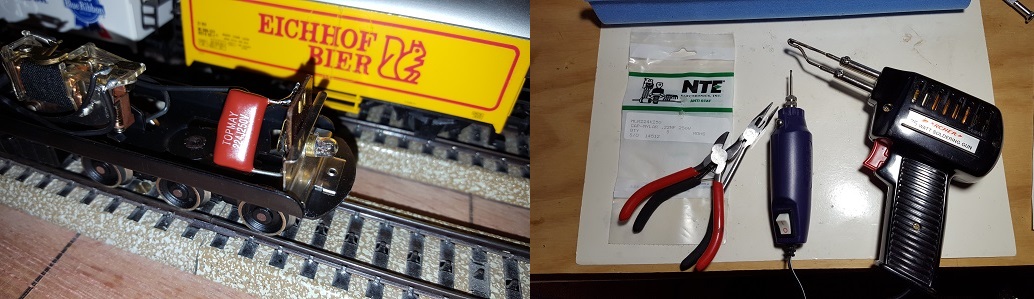

04/07/19 ~ 3066 Locomotief Diesel ~ NMBS Reeks 204008: installation of an
EMI-snubber: Capacitor Mylar 0.22 μF 250 Volts.

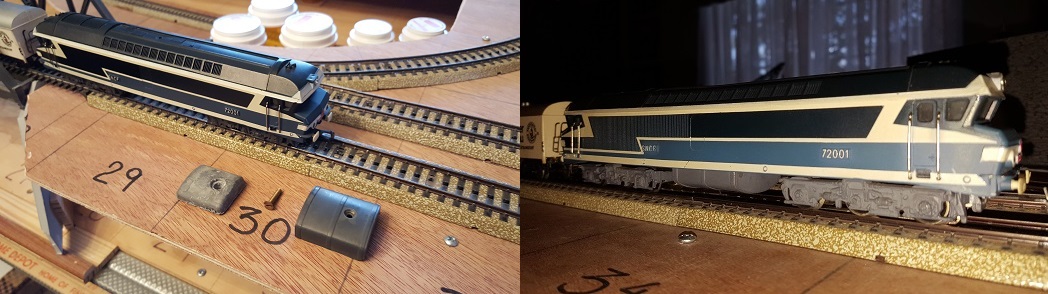

04/14/19 ~ No Box Locomotief Diesel ~ SNCF Series 72001: raise the diesel
tank to avoid scraping over the turnouts.
05/01/19 ~ Train C020 NMBS Series 64041 (Belgian Freight).

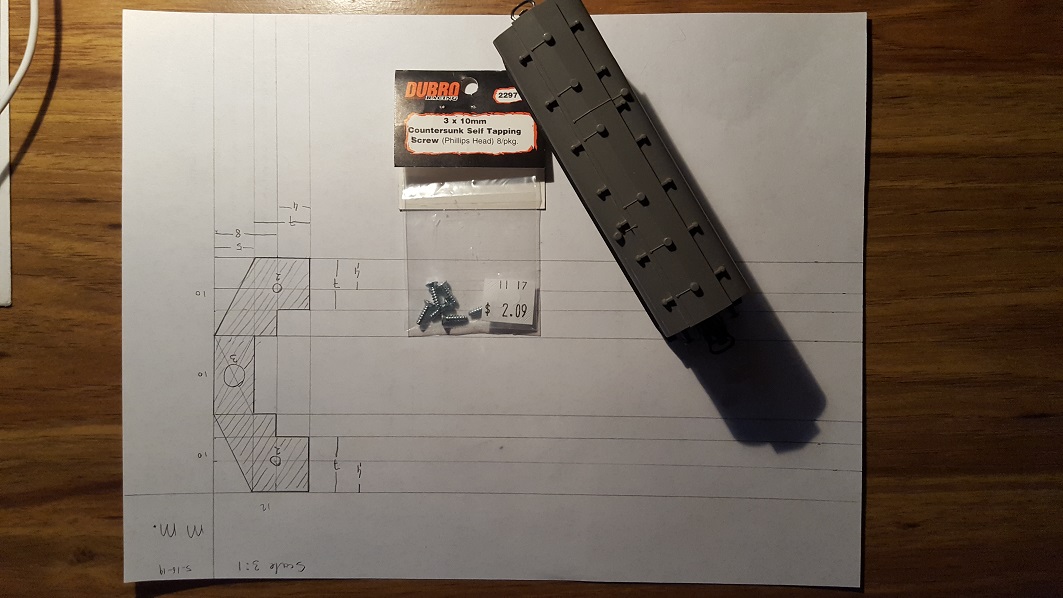

05/09/19 ~ 4004 Passenger car, 6 compartments, 2nd Class, 3 axles: construct
brackets for center axle.
05/21/19 ~ Train C012 NMBS Series 5920 S 3/6 (Passenger, Old-Timer).
05/27/19 ~ 4083 Personenrijtuig ~ Nahverkehrswagen, Stainless Steel,
Deutschen Bundesbahn: 2* Interior Lighting Kit with LED's 73400 installed

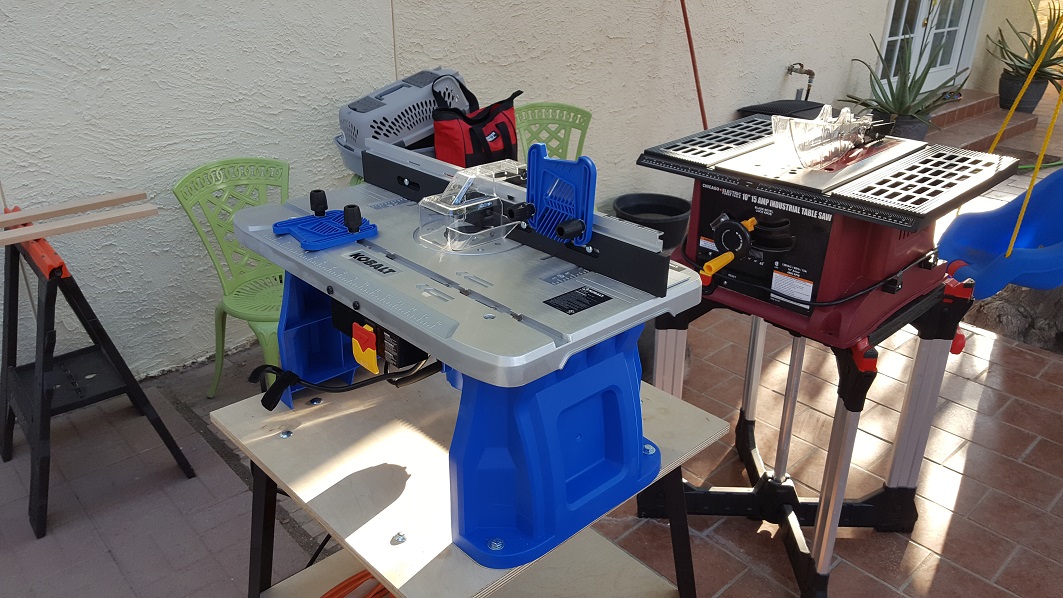

Euro T&F 009 ~ 05/29/19 ~ Dx-carrier: Tooling-up: Benchtop Table Saw 10" 15
Amp & Tool Stand Universal

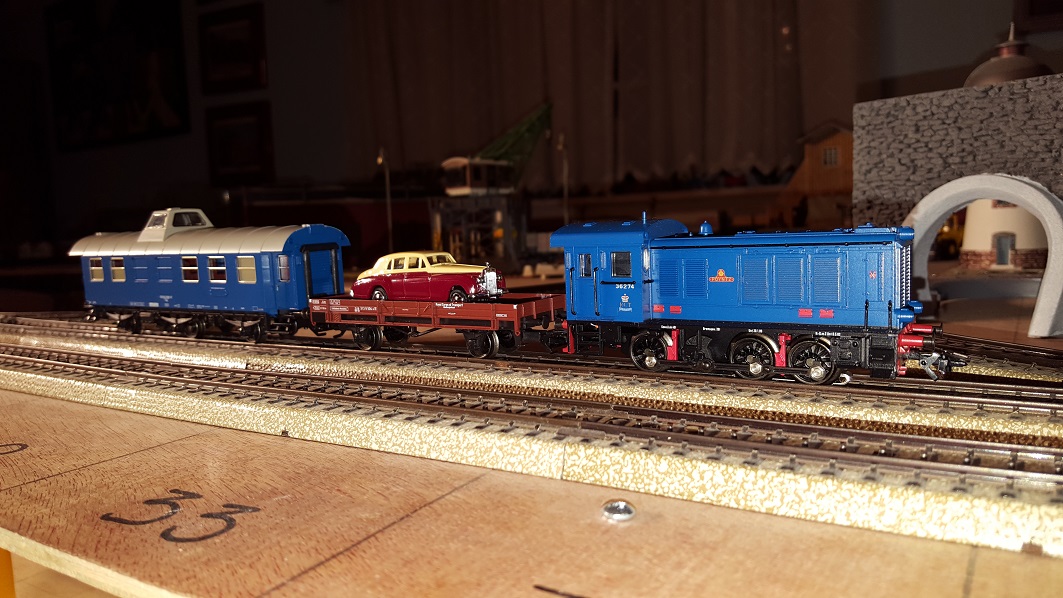

06/06/19 ~ Train C021 RCT 36247 (British Army WWII 1945).

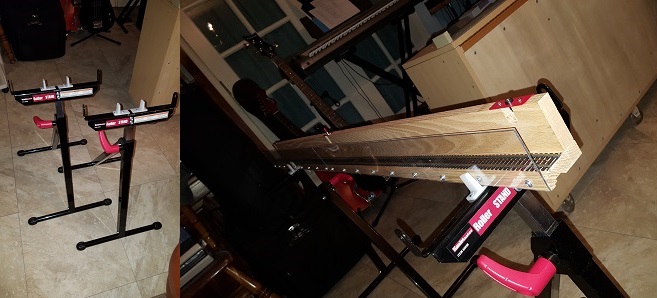

06/21/19 ~ Dx-carrier Conventional / Digital: Dx-Port In / Out: Roller
Stand.
07/02/19 ~ Power Plant, Digital Programming Track: Buffer, open end side:
Pre-paint.
07/03/19 ~ Power Plant, Digital Programming Track: Buffer, open end side:
Painted.

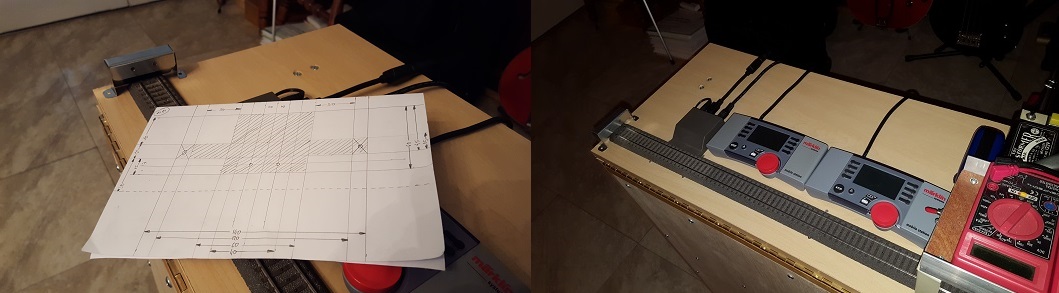

07/03/19 ~ Power Plant, Digital Programming Track: Controler002 = Digital
Operation: MASTER & Controler004 = Digital Operation: SLAVE.

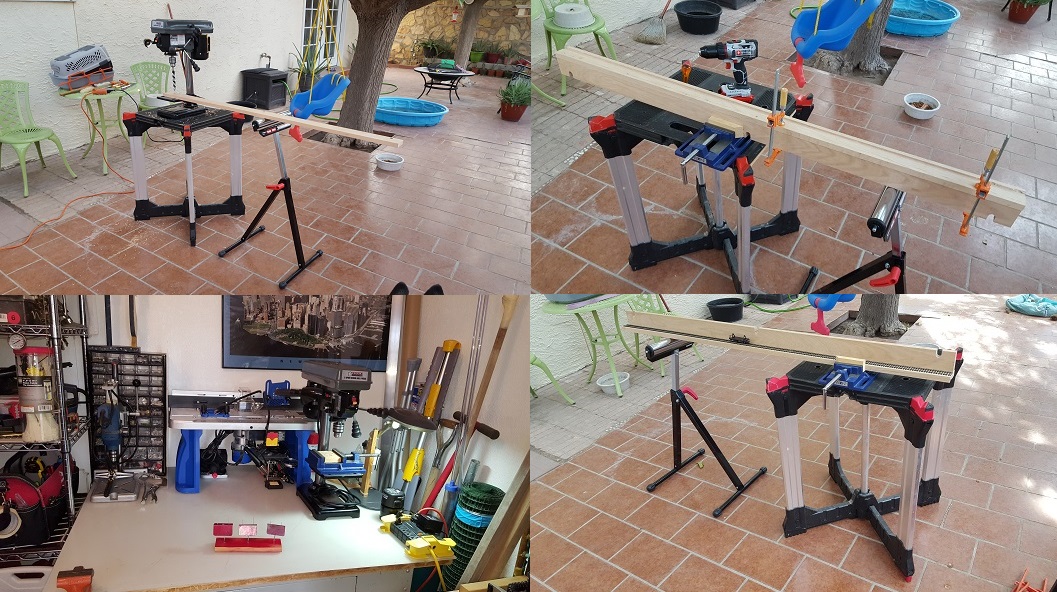

07/14/19 ~ Dx-carrier Conventional Prototype: Cut 2* Wood @1500mm ~> Bottom
Piece and Upright Piece.
07/14/19 ~ Tool-up for Dx-carrier Conventional: fasten the Router onto the
Tool Stand Universal.
07/18/19 ~ Dx-carrier Conventional Prototype: Drill 3* holes using Auger Bit
Set 5/8".
07/21/19 ~ Dx-carrier Conventional Prototype: assemble Upright Piece
perpendicular onto the Bottom Piece.
07/27/09 ~ Dx-carrier Conventional Prototype: fixture to spray paint 3*
Brackets: Red = Conventional.
07/31/19 ~ Dx-carrier Conventional Prototype: Mechanical Testing.

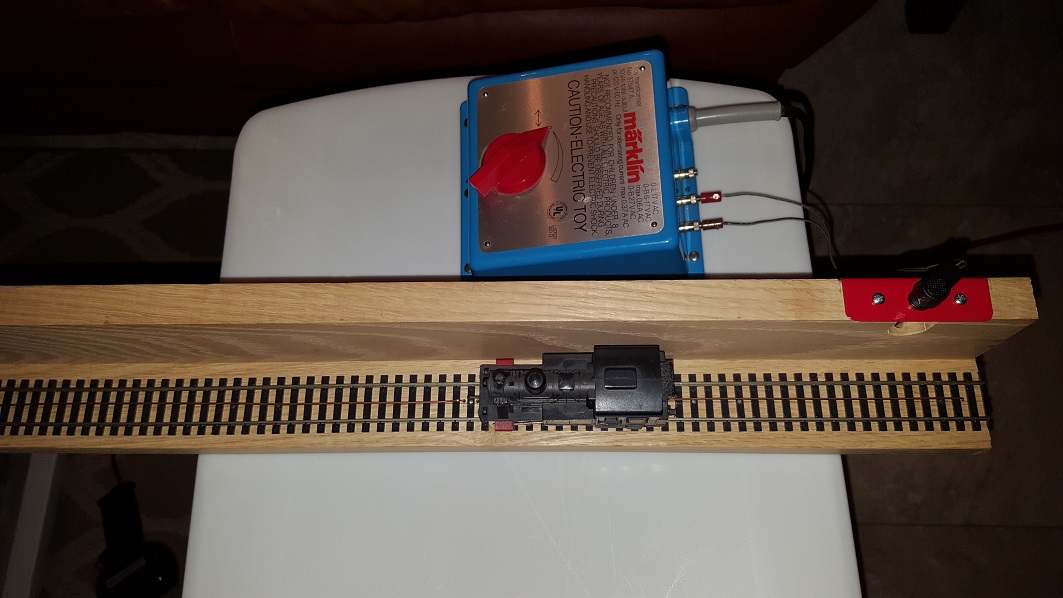

08/07/19 ~ Dx-carrier Conventional Prototype: Functional Testing.
08/29/19 ~ Tool-up for Dx-carrier Conventional: Drill Master: Cut-Off Saw
6".
09-04-19 ~ New Arrival: Train C023 Henschel DHG 500 (Sugar Beets).
09-09-19 ~ New Arrival: Train C024 CFL 450-455 (Maintenance).

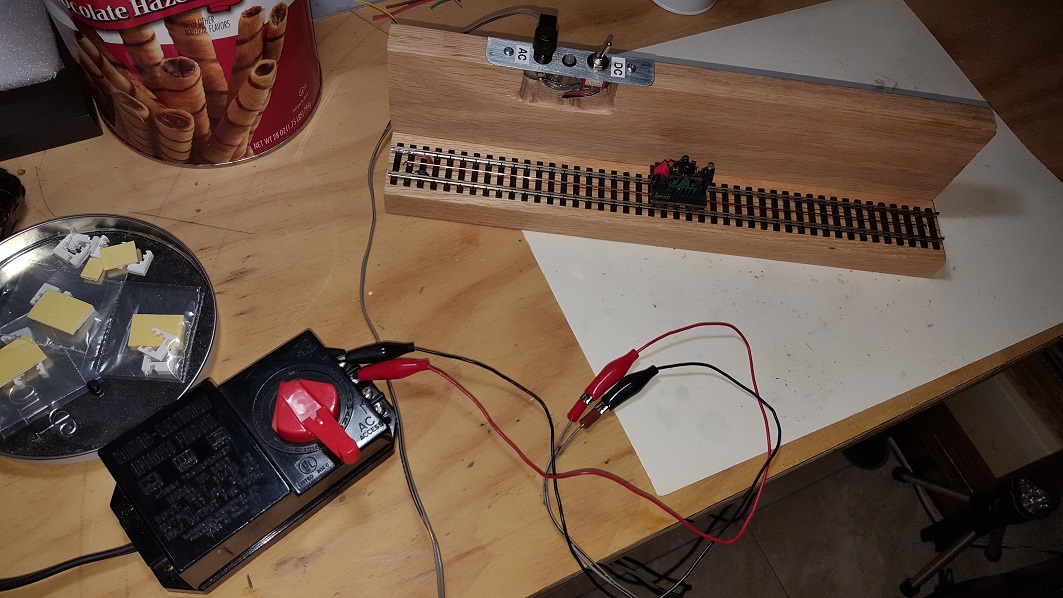

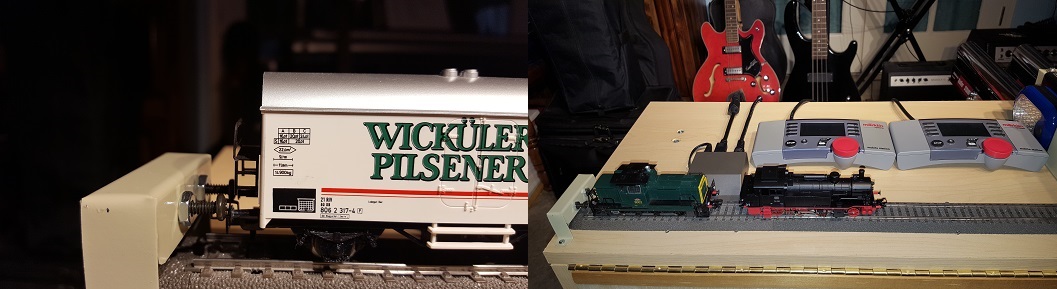

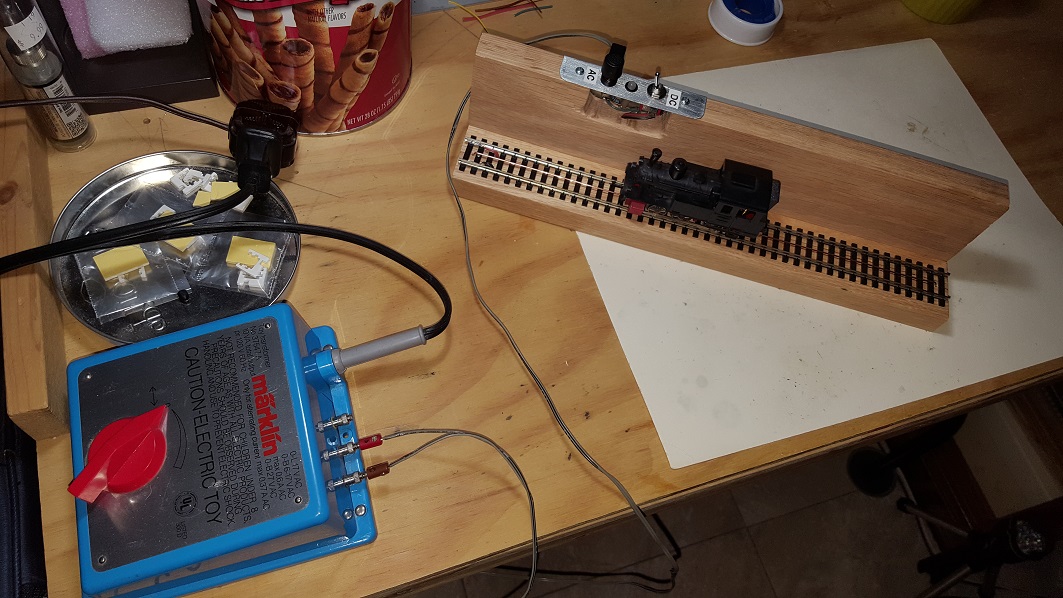

09/29/19 ~ Test Track 01: in 3-Rail-AC-operation.
09/29/19 ~ Test Track 01: in 2-Rail-DC-operation.
10/06/19 ~ Dx-Port In Stand & Dx-Port Out Stand: Installation of the nylon
guide tabs & Fitting of Dx-carrier Conventional Prototype.
10/08/19 ~ Dx-Port In: Finishing laying track. /// 10/12/19 ~ Dx-Port Out:
Finishing laying track.
10/12/19 ~ Wissel 24~5119R~Blok002 (Metaal) replacement for Wissel
M2~5123R~Blok002.
10/12/19 ~ Wissel 25~5117L~Blok004 (Metaal) replacement for Wissel
M3~3601WL~Blok004.

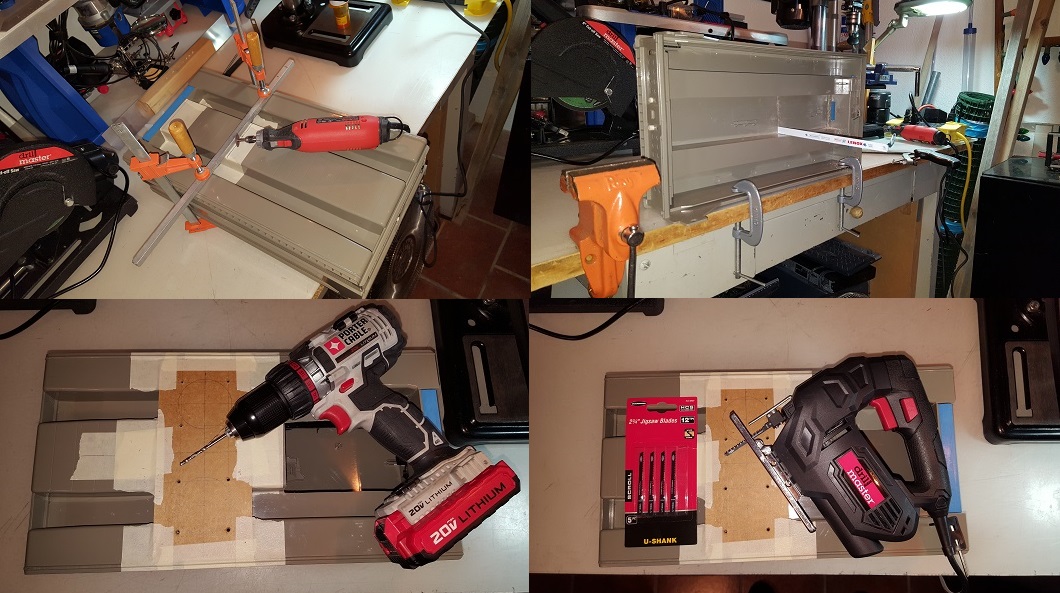

10/17/19 ~ Control Panel ~ Dx-Port In / Dx-Port Out: Gutting the
ATM-cassette.
10/18/19 ~ Control Panel ~ Dx-Port In / Dx-Port Out: Cut out: Compartment
Fit Transformer F.
10/20/19 ~ Control Panel ~ Dx-Port In / Dx-Port Out: Fit Panel Meters.
10/20/19 ~ Control Panel ~ Dx-Port In / Dx-Port Out: Fit Panel Meters.
11/02/19 ~ Control Panel ~ Dx-Port In / Dx-Port Out: Preliminary.

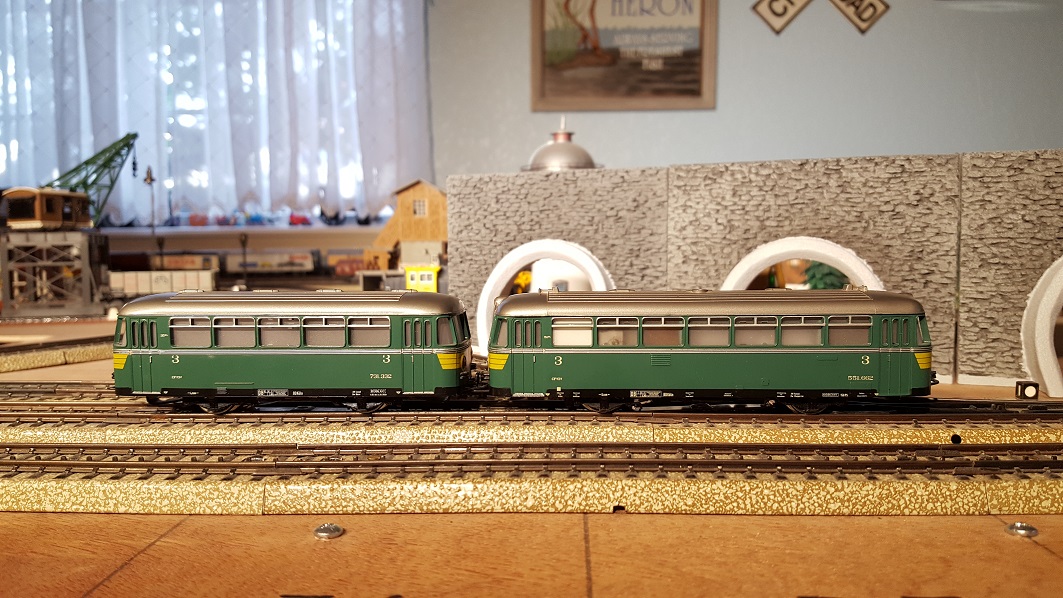

10/24/19 ~ New Arrival: Railbus ~ 551.662 & Car ~ 731.332 Belgische
Spoorwegen (SNCB/NMBS).

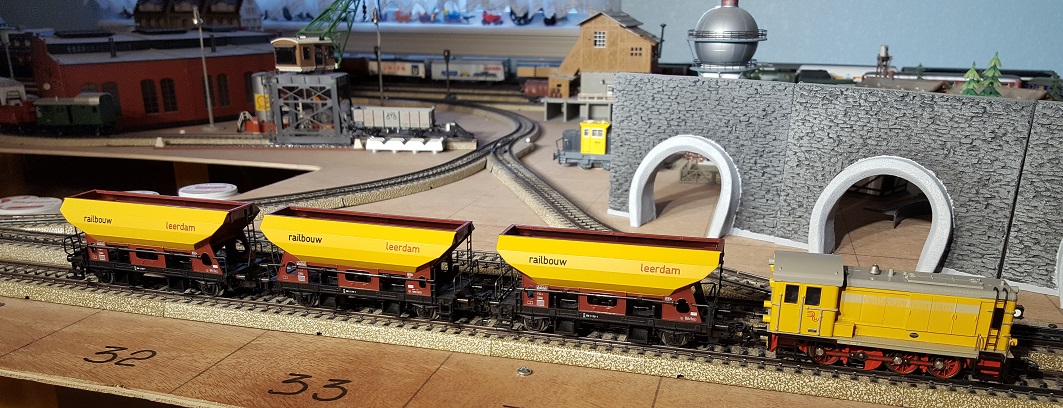

10/31/19 ~ New Arrival: Track Laying Train "railbouw leerdam" Nederlandse
Spoorwegen (NS)
